Connectors insert housing machine with end tinning function, which is wire harness processing equipment upgraded by JMK, it is very powerful and widely used. The latest upgrade uses a precision servo CNC system, which can produce wire harness with length from 45 to 9999mm (customizable), 1-8 kinds of wire color selection (standard 6 colors), and supports the production of cable #18mm to #28; added end strands and tin dipping station, which can be dipped in tin after the wire harness is inserted into the connector, which is convenient for the next spot welding process, so it is widely used in the production of wire harness with PCB connections and other electronic components.

connectors insert housing machine

JM-601A connectors insert housing machine with end tinning function.


Main functions of connectors insert housing machine with end tin:

The wire is cut off at a fixed length, stripped at both ends, then terminal crimped at single end, inserted into connector at the other end, dipped in tin at extra station. Also, it can be non-standard customization, but also can flexibly expand a number of additional functions: inkjet printing, insert waterproof seals, insert heat-shrinkable tube, code tube and so on. So, after the wire harness is processed, the processed wire harness can be directly welded to the corresponding electrical components, such as PCB, working power supply, display, etc., without adding other raw materials to process the wire harness.


wire harness assembly

Sample of Wire Harness Assembly


Other configuration of connectors insertion housing machine with end tin.

JM-601A can be equipped with crimping pressure monitoring CFM and CCD camera detection system, which can display product image and crimping force curve in real time, make comparative analysis, sound alarm and automatically sort out defective products when crimping is bad. The quality control of the whole processing process greatly saves the labor cost, ensures the product quality and improves the production efficiency.


Machine detail display.

JM-601A connectors insert housing machine with end tinning function

JM-601A connectors insert housing machine with end tinning function

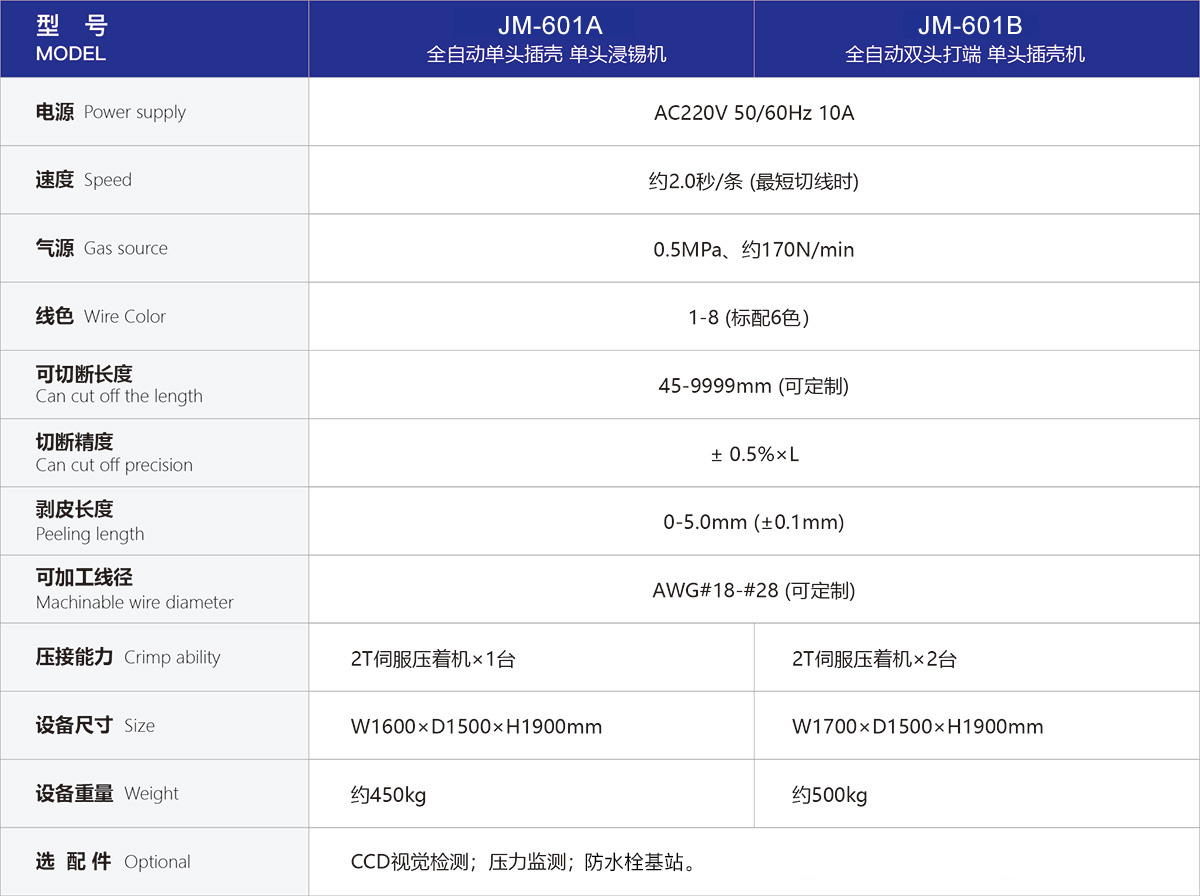

Specification of JM-601A

JM-601A connectors insert housing machine with end tinning function
